Product Description

Duct type fan-coil units are designed for flush mounting in a suspended ceiling. Air is supplied by airway channels in the room. It is widely used in HVAC systems of residential, commercial, and industrial buildings that use ducted split air conditioning or central plant cooling. The standard control system is wired type. Also can be controlled by app via Phone.

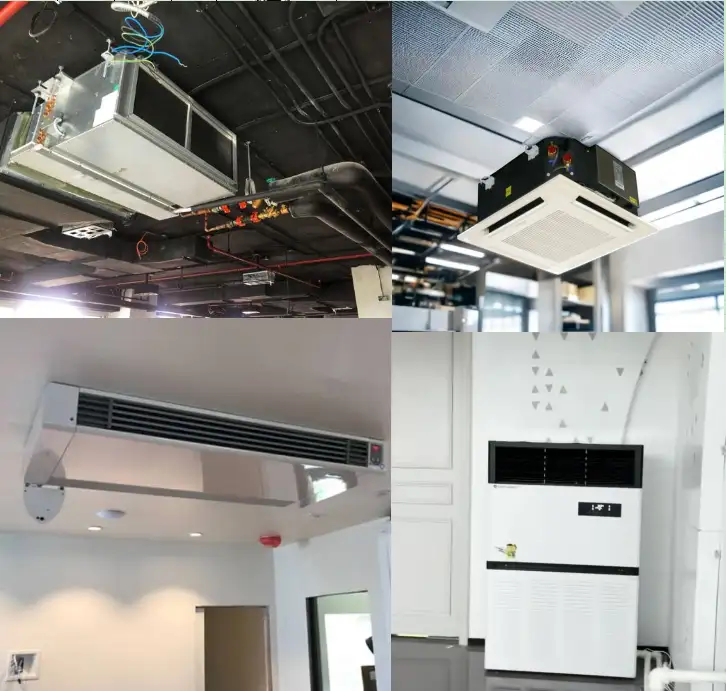

We also supply other FCU options such as cassette type, floor&Ceiling type, floor standing type, wall mounted, etc.

Model No.		FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Air Volume(m³/h)	High	340	510	680	850	1020	1360	1700	2040	2380
	Medium	260	390	520	650	780	1040	1290	1580	1820
	Low	180	270	360	450	530	710	890	1060	1240
Cooling capacity (W)	High	1800	2700	3600	4500	5400	7200	9000	10800	12600
	Medium	1620	2450	3240	4050	4850	6480	7980	9580	11200
	Low	1430	1990	2650	3220	3820	5140	6400	7480	8960
Heating capacity (W)	High	2700	4050	5400	6750	8100	10800	13500	16200	18900
	Medium	2450	3680	4860	6120	7275	9980	11960	14200	16520
	Low	2160	3240	4300	5200	6400	8600	9200	10800	12960
Cold water supply and return temp.		7℃-12℃
Hot water supply temp.		40℃-60℃
Power Supply		220V/50hz
Heat Exchanger	Type	Copper string aluminum fin, pitch of fins 2.2mm
	3 rows of water supply kg/h	324	482	655	814	936	1278	1602	1915	2178
	Water resistance KPa	20	22	25	28	30	32	35	38	40
	Working pressure	1.6MPa
Low static pressure unit	Input power (W)	37	52	62	76	96	134	152	189	228
Low static pressure unit	Motor Power (W)	10	16	20	25	30	20*2	25*2	30*2	40*2
High static pressure unit	30Pa Input Power(W)	44	59	72	87	108	156	174	212	253
	30Pa Motor Power (W)	12	20	25	30	40	25*2	30*2	40*2	50*2
	50Pa Input Power(W)	49	66	84	100	118	174	210	250	300
	50Pa Motor Power (W)	16	25	30	40	50	30*2	40*2	50*2	60*2
Fans quantity		1	2	2	2	2	3	4	4	4
Noise level dB(A)	12pa	≤33	≤35	≤36	≤37	≤38	≤38	≤39	≤40	≤41
	30Pa	≤36	≤37	≤38	≤39	≤40	≤41	≤42	≤43	≤44
	50Pa	≤38	≤39	≤40	≤41	≤42	≤43	≤44	≤45	≤46
Connection tube specifications	Inlet and outlet pipes	ZG3/4”internal thread
Connection tube specifications	Condensate pipe	ZG3/4”External thread

Factory description

Application description

They are used for hotel, villa, workplace,both residential and commercial projects as the terminal equipment of all type of water chiller system.

Why Choose Us?

1)The products can be made completely according to the customer's requirements, and we have our own factory.

2)High quality product and good price.

3)Good Pre-sale、on sale and after sales service.

4)Short delivery time.

5)Exported all over the world, with rich experience.

Packaging and shippings

Packaging and shipping

Customer Visits

Customer visitors

Keywords

TONGXING

Duct Type Fan Coil unit

Duct type is the most popular and economic FCU. With middle and high static models
